Rebound Hammer Test for Concrete Strength

Objective and significance

Rebound hammer test is a Non Destructive test unlike cube compression strength test. It means the test does not break any specimen to calculate the strength of the hardened concrete. This test is rapid and very convenient to use. Schmidt hammer test is also another name of rebound hammer test.

• Rebound hammer test is useful to find out compressive strength of the concrete
• It's a non-destructive test
• It assesses uniformity of concrete
• Helps to assess quality of concrete

Track strength as concrete cures Concrete Calculator All in One logs a pour and follows strength development day by day, with reminders before formwork is struck.

Try the app

Aim

To assess the likely compressive strength of concrete by using rebound hammer.

Apparatus

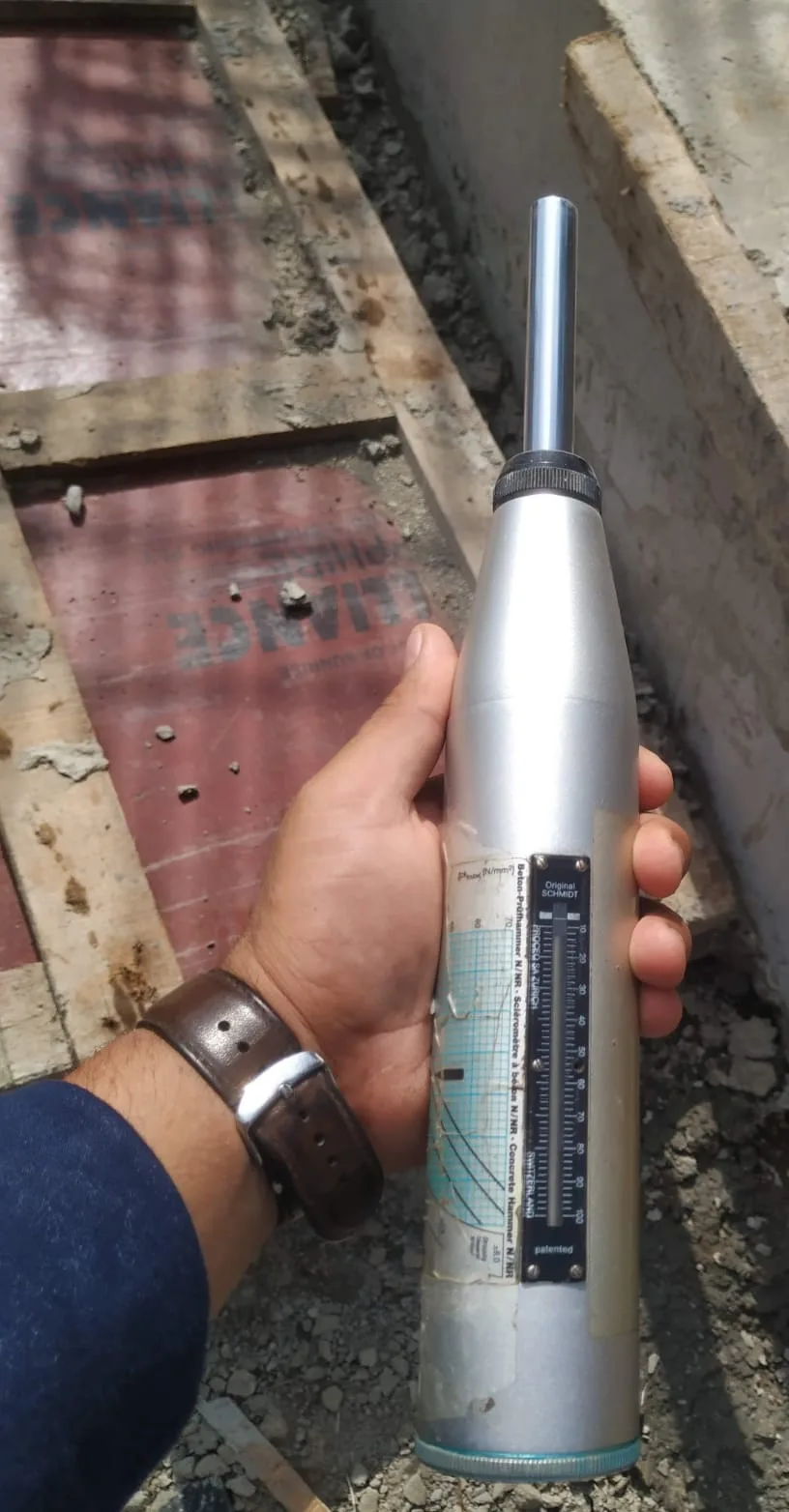

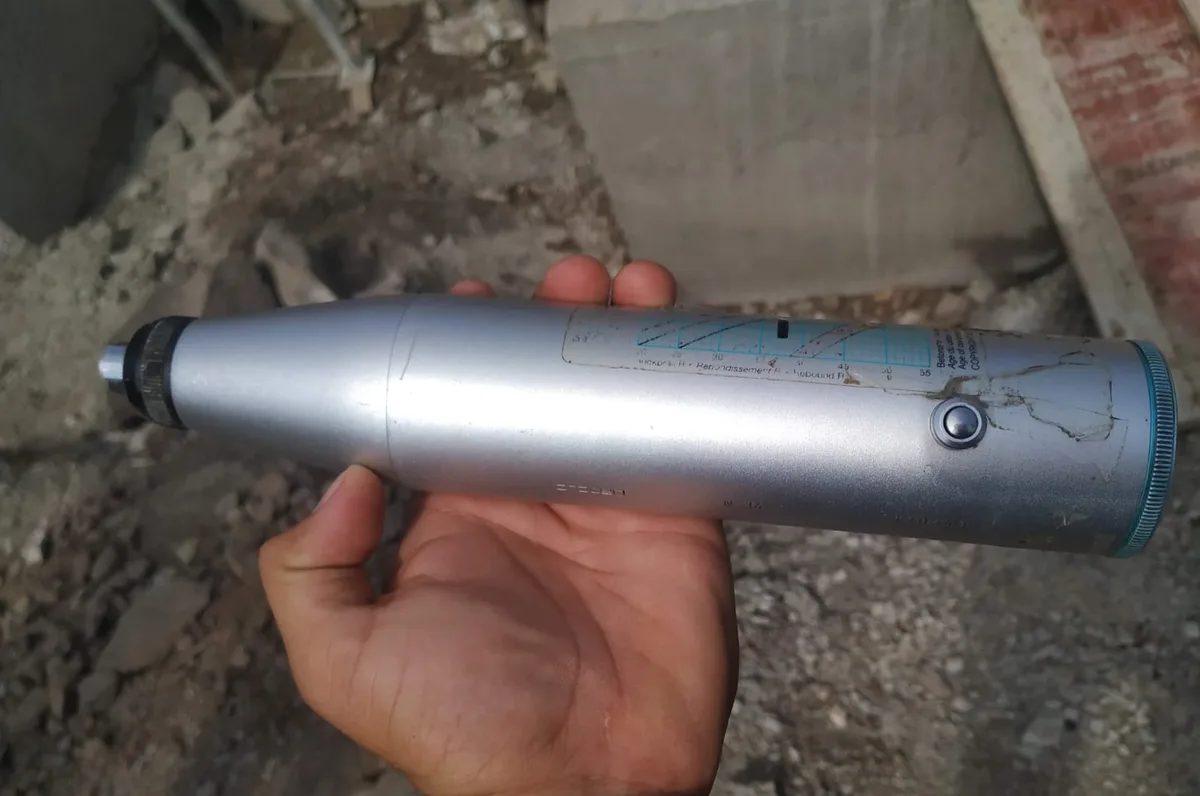

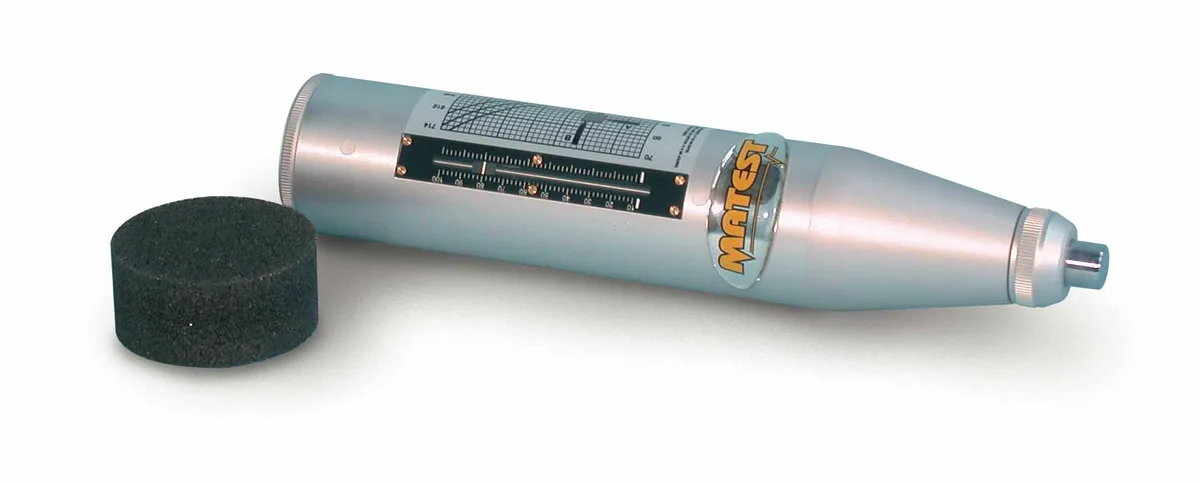

Rebound Hammer: It consists of a spring controlled mass that slides on a plunger within a tubular housing.

Procedure

1. Before commencement of a test, the rebound hammer should be tested against the test anvil, to get reliable results, for which the manufacturer of the rebound hammer indicates the range of readings on the anvil suitable for different types of rebound hammer.

2. Apply light pressure on the plunger – it will release it from the locked position and allow it to extend to the ready position for the test.

3. Press the plunger against the surface of the concrete, keeping the instrument perpendicular to the test surface. Apply a gradual increase in pressure until the hammer impacts. (Do not touch the button while depressing the plunger. Press the button after impact, in case it is not convenient to note the rebound reading in that position.)

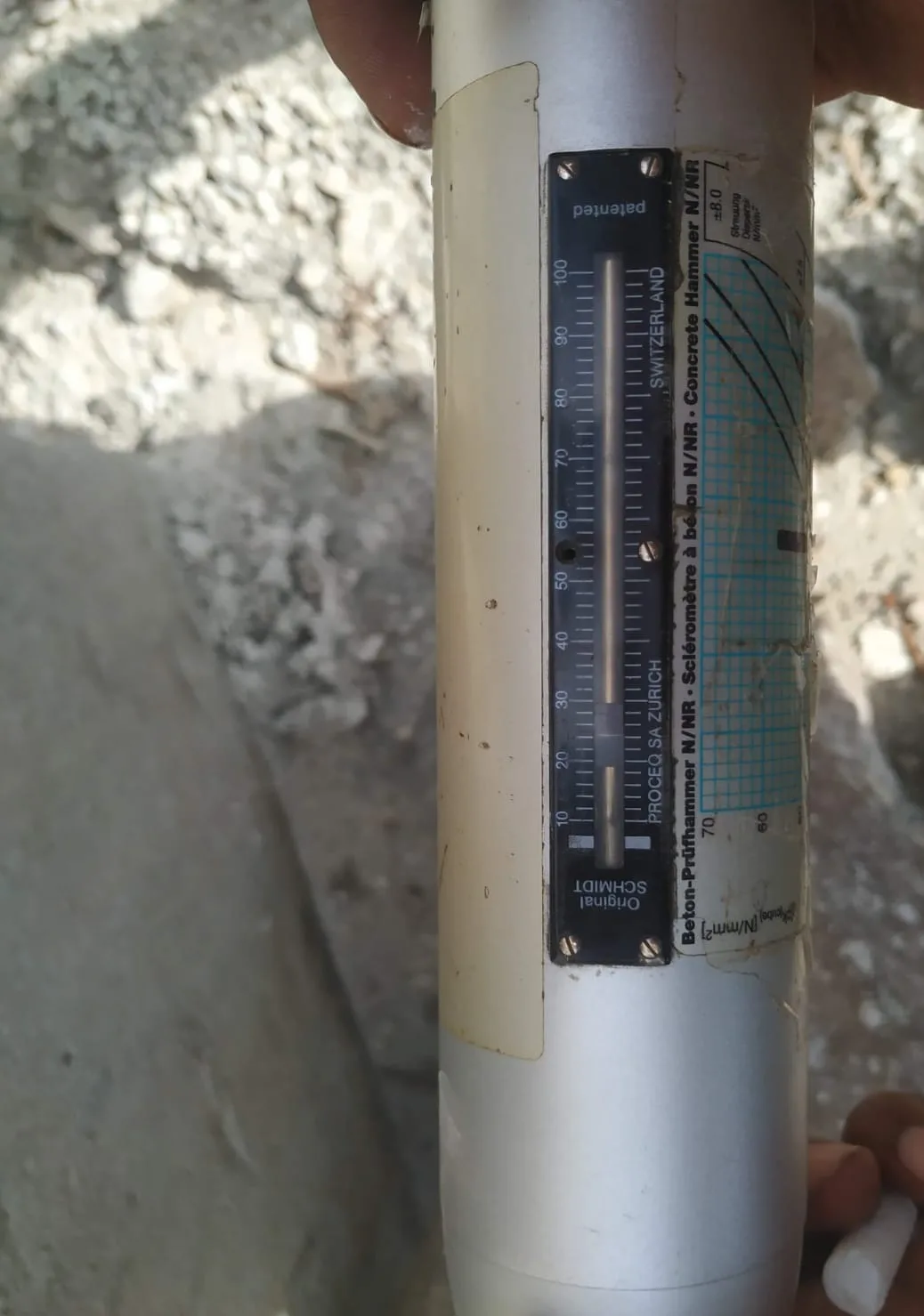

4. Take six readings around each point of observation; their average is the rebound index for that point.

Interpretation of results
